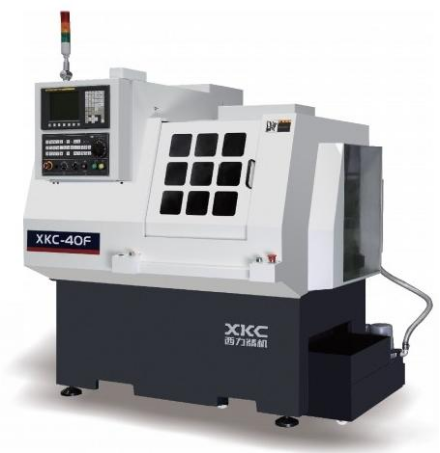

40F/40IF
系列精密數控排刀車床
SUPER-SMALL HIGH PRECISION CNC LATHES
高 精 度 主 軸 ：High Precision Spindle:
機床采用套筒式主軸（選配：電主軸），使用精密級主軸專用軸承，保證主軸的高剛性和持久精度，主軸跳動<2μm。
The machine tool features a sleeve-type spindle (optionally equipped with an electric spindle) and precision-grade dedicated bearings, ensuring high spindle rigidity and long-term accuracy with a spindle runout of <2μm.
高 效 率 加 工： High Efficiency Machining：
機床主軸最高轉速5500轉/分鐘，X、Y 軸快移速度可達18米/分鐘。可以配置自動送料機，實現高速、高效自動化加工。
The machine tool spindle achieves a maximum rotational speed of 5,500 revolutions per minute, with rapid movement speeds of up to 18 meters per minute along the X and Y axes. It can be equipped with an automatic feed system to enable high-speed, efficient automated machining.
高 精 度 進 給： Accurate Feeding：
進給各軸全伺服驅動，采用高精度滾珠絲杠，保證加工精度及長時間的精度保持，進給各軸重復定位精度<±3μm。
All feed axes are fully servo-driven, utilizing high-precision ball screws to ensure machining accuracy and long-term precision maintenance, with repeat positioning accuracy of <±3μm for each feed axis.
大行程排刀式刀架：Long travel blade-type knife holder：
超大行程排刀式刀架結構，刀位數多，使重復換刀誤差為最小，換刀高 速準確，能夠大幅度節省加工時間。
The ultra-long travel blade-type tool holder features multiple tool positions, minimizing repeat tool-changing errors and enabling rapid, precise tool changes that significantly reduce machining time.
項目ITEM | 40F | 401F | |
加工能力 Capacity | 最大回轉直徑Max swing diameter | Φ400mm | |
床鞍上回轉直徑Swing over cross slide | Φ90mm | ||
最大加工直徑Max. turning diameter | φ360mm | ||
最大加工長度Max. turning length | 200mm | ||
主軸 Spindle | 回轉速度Spindle speed | Max.5500r/min | |
主軸通孔直徑 Spindle boredia | φ57mm | ||
主軸可通棒料直徑Through hole diameter | 筒夾(Colletchuck)φ42mm 卡盤(Chuck)φ45mm | 卡盤(Chuck) 中空45mm | |
主軸電機 Main motor F FA/FC | 7.5KW (5.5/7.5KW) | 電主軸12.3KW | |
刀架 Turret | 刀位數Number of stations | 7 | |
刀具尺寸(車刀/鏜孔刀) Tool size(Lathe boring cutter) | 20×20/φ25mm | ||
進給 Axes | 導軌形式 Guideway construction | 直線導軌Linear rail | 硬軌Hard rail |
X軸行程Travel X | 360mm | ||
Z軸行程Travel Z | 筒夾(Colletchuck)220mm 卡盤(Chuck)230mm | 320mm
| |
X/Z軸最大快移速度 Rapid feed X/Z | 20m/min | 15m/min | |
X/Z進給電機Feed motors X/Z | 伺服Servo 1.2KW | ||
C軸(僅40FC) | 最小控制角度Min. control angle | 0.001°(Bzi編碼器) | |
其它 Others | 總電氣容量Required electric power | 12 kVA | |
中空液壓缸Rotating hydraulic cylinder | 6" | ||
機床尺寸(長×寬×高)Floor Space | 1811×1523×1672 | ||
機床重量Mass of machine | 約(About) 2100KG | ||
